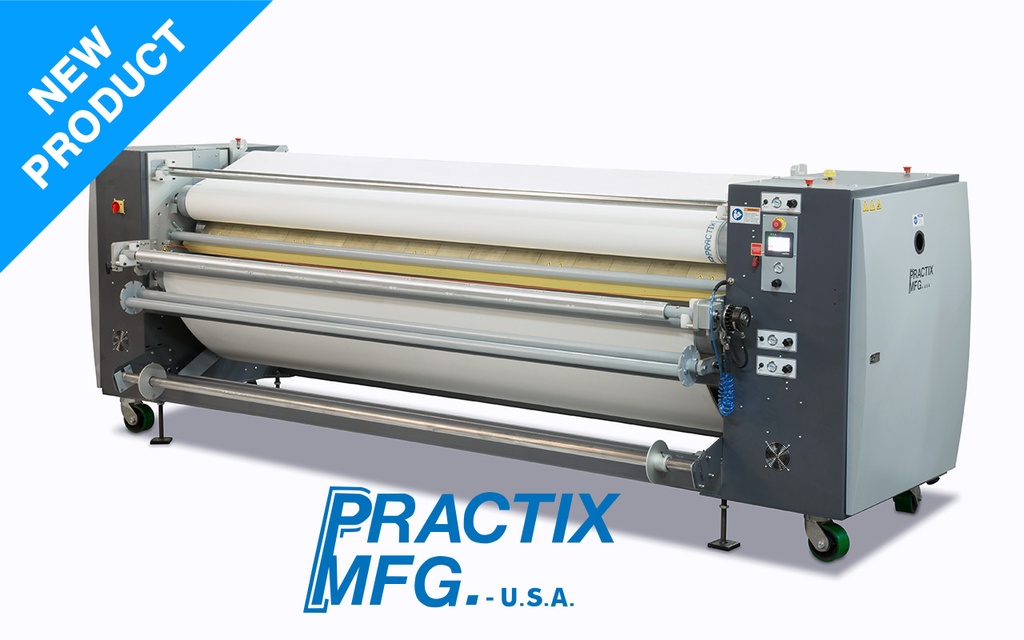

Practix OK-16 Rotary Sublimation Press 128" Roll-to-Roll
MSRP: $101,000.00
MSRP does not include ink, shipping, installation or training.
Practix Manufacturing’s OK-16RTR provides the solution of increased production of dye sublimation paper transfer and direct fabric fixation. The Practix OK-16RTR Rotary Press is available in 66″, 88″, 104″ and 128″ wide belt widths. The 16” oil filled heated drum is engineered providing for 230 degrees or 27″ of heat contact, achieving a production speed at 335 feet per hour when operated at a 40 second dwell time. Including a state-of-the-art sensor belt tracking system, which ensures no horizontal movement and “ghosting” on any of your fabrics.
It is in APC’s best interest to use the technical specifications that any manufacturer includes with equipment. However, as specialists, we are determined to provide our customers and clientele with the most relevant and beneficial information about any product. We look forward to consulting and strategizing the best possible solution for you and your business. Let our experience be the difference in your experience.
Shipping within the United States. See shipping policy
Orders for stocked items received by 2pm will ship same day
Ink orders of $500 or more receive free UPS Ground Shipping *
Features & Benefits :
- 66”, 88”, 104″, and 128″ belt widths allow for printing on full-width fabrics
- 7″ touch screen interface of all mechanical functions provides intuitive user control and savable settings ensures consistent production
- Digital temperature controller with PID and auto tune
- 3 unwinds & rewinds with independent pneumatic adjusting more or less tension or brake
- 3″ chucks for all unwind and rewind shafts
- Reversing capability
- Safety systems (emergency stops and hand protection at entry)
- Automatic cool down
Applications :
Increasing production output with an impressive 16″ oil filled drum. This press is ideal for both dye sublimation paper transfer as well as direct fabric fixation. Constructed with a heavy-duty unitized frame with solid steel construction. Operators will be confident running the OK-16RTR press knowing it provided heat distribution consistently from side-to-side, as well as job-to-job. This press also comes with the standard triple unwind/rewind system for transfer printing for roll-to-roll production. Pneumatic brakes and clutches provide precise tensioning of fabric and papers.
