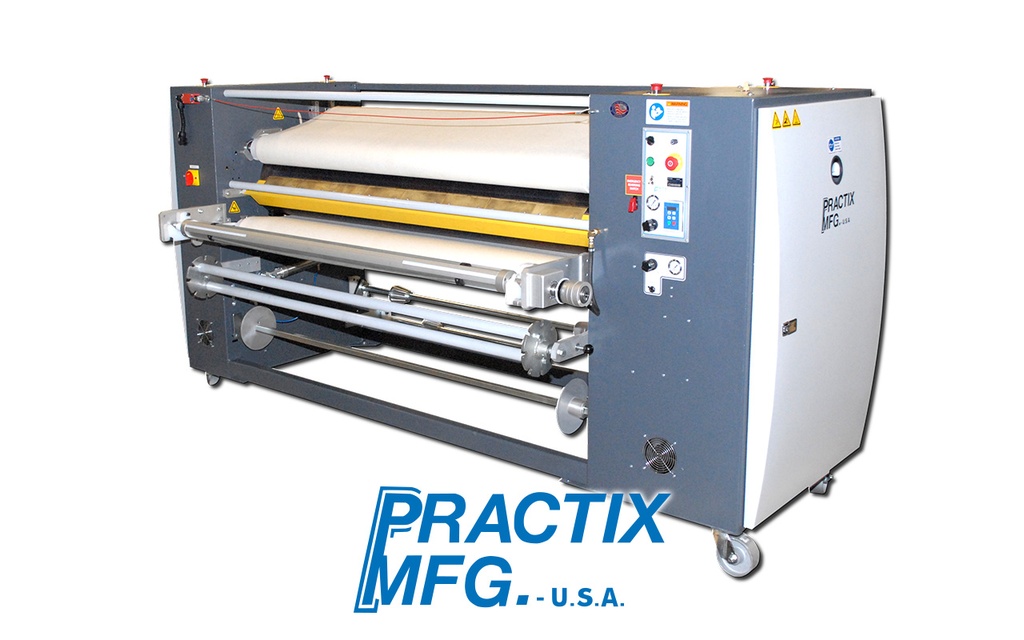

Practix OK-10 Rotary Sublimation Press 66" Roll-to-Roll
MSRP: $39,700.00
MSRP does not include ink, shipping, installation or training.
The Practix dye sublimation rotary heat model OK-10RTR is available in 48” or 66” wide printable widths. The oil filled heated drum is 10″ (250 mm) in diameter and has 240 degrees of wrap achieving faster production speeds then most comparable models. This model can be used for transferring on continuous or roll materials. This heat transfer machine is small and affordable offering the Practix high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.
It is in APC’s best interest to use the technical specifications that any manufacturer includes with equipment. However, as specialists, we are determined to provide our customers and clientele with the most relevant and beneficial information about any product. We look forward to consulting and strategizing the best possible solution for you and your business. Let our experience be the difference in your experience.
Shipping within the United States. See shipping policy
Orders for stocked items received by 2pm will ship same day
Ink orders of $500 or more receive free UPS Ground Shipping *
Features & Benefits :
- 10" diameter drum makes the OK-10 the fastest drum machine of its size for the digital market.
- Oil-filled, steel-encased drum design.
- State-of-the-art temperature controller allows for temperature accuracy and makes colors consistent from side to side and job to job.
- Automatic belt tracking, ensuring no lateral movement or ghosting on your fabrics.
- 3 unwinds and 3 rewinds with pneumatic tensioning to adjust the level of tension.
- Heavy-duty, all steel unitized frame.
- 100% Nomex felt belt
- Oil filled 10″ diameter drum engineered for 240 degrees or 21″ of production contact.
- Automatic belt tracking.
- Touch screen interface of all mechanical functions provides intuitive user control and savable settings ensures consistent production.
- 2 unwinds/2 rewinds with independent pneumatic adjusting tension or brake.
- 1 unwind/1 rewind to utilize tissue paper for protection of the belt for cut parts or mesh fabric.
- 3″ chucks for all unwind and rewind shafts.
- Reversing capability.
- Safety systems (emergency stops and hand protection at entry).
- Automatic cool down
