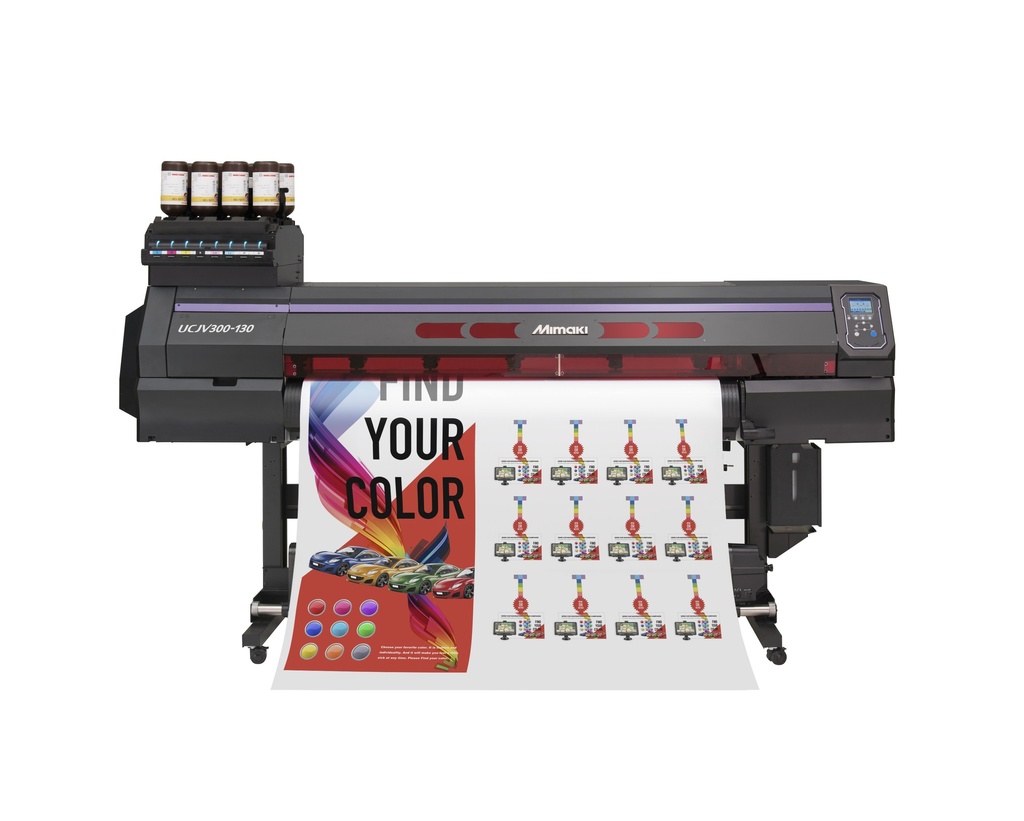

Mimaki UCJV300-130 UV LED Printer/Cutter (54" Wide)
MSRP: $21,995.00
MSRP does not include ink, freight, installation or training.
UCJV300 Series is a versatile inkjet printer having a combined function of both printing and cutting mounted with UV-curable ink. UCJV300 Series is a high spec model equipped with the 4-layer/5-layer print function in addition to UV LED print and Print&Cut. This new model is enough to cover wider ranges from a quick job with short delivery time to an avant-garde signboard.
Shipping within the United States. See shipping policy
Orders for stocked items received by 2pm will ship same day
Ink orders of $500 or more receive free UPS Ground Shipping *
Features & Benefits :
- "Multilayer print" for a new advertisement expression
- 5 layer print [Front & Back Printing]
- On-demand print utilizing UV characteristics; Quick access to next processing and sign applying due to UV ink property and a wider application range with UV print.
- Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]
- Productive cutting functions. A new function of [ID Cut] will improve the work efficiency.
Compatibility :
| LUS-170 ［C,M,Y,K,Lc,Lm,W,Cl］ | C M Y K |
|---|---|
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-175 ［C,M,Y,K,Lc,Lm,W,Cl］ | C M Y K |
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-200 ［C,M,Y,K,W］ | C M Y K |
| C M Y K W |
Applications :
- Signs and Displays
- Window Graphics
- Banners
- Posters
- POP Displays
- Flags
- Vehicle Wrapping
- Wall Coverings
- Stickers
- Labels & Decals
- Proofs
| UCJV300-75 | UCJV300-107 | UCJV300-130 | UCJV300-160 | |
|---|---|---|---|---|
| Print head | On-demand piezo head | |||
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi | |||
| Droplet size | Min. 7pl, Max. 28pl | |||
| Head gap | 3 degrees adjustment (2.0/2.5/3.0 mm) by manual | |||
| Ink | Type/Color | LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl) *Only available in specific countries | ||||
| LED-UV ink: LUS-200 (C, M, Y, K, W) | ||||
| Capacity | 1L (Bottle supply) | |||
| Max. print width | 800 mm (31.5 in) | 1,090 mm (42.9 in) | 1,361 mm (53.5 in) | 1,610 mm (63.4 in) |
| Max. media width | 810 mm (31.9 in) | 1,100 mm (43.3 in) | 1,371 mm (54.0 in) | 1,620 mm (63.8 in) |
| Media thickness | 1.0 mm or less | |||
| Media roll outer diameter | φ250 mm or less | |||
| Media roll weight | 40 kg (88.2 lb) or less | |||
| Cut speed | Max. 300 mm/s (420 mm/s in 45 degrees direction) | |||
| Cut pressure | 10-450 gf | |||
| Cutter Types | Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure | |||
| Safety standard | VCCI Class A / FCC Class A / UL 60950-1 ETL / CE Marking (EMC, Low voltage, Machinery directive, RoHS) / CB Report / REACH / ENERGY STAR® / RCM | |||
| Interface | USB2.0 / Ethernet 1000 BASE-T | |||
| Power supply | Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) | |||
| Power consumption | AC100V: 1.44kW / AC200V: 1.92kW | |||
| Operational environment | Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing) | |||
| Dimensions (W×D×H) | 2,090 x 776 x 1,475 mm (82.3 x 30.6 x 58.1 in) | 2,380 x 776 x 1,475 mm (93.7 x 30.6 x 58.1 in) | 2,650 x 776 x 1,475 mm (104.3 x 30.6 x 58.1 in) | 2,900 x 776 x 1,475 mm (114.2 x 30.6 x 58.1 in) |
| Weight | 144 kg (317.5 lb) | 161 kg (354.9 lb) | 177 kg (390.2 lb) | 188 kg (414.5 lb) |
DB10339-07_UCJV300Series_EN.pdf
Download
