Mimaki Mimaki JFX200-1213 EX medium-format UV-LED Flatbed Printer
MSRP: $71,495.0000
MSRP does not include ink, shipping, installation or training.
Shipping within the United States. See shipping policy
Orders for stocked items received by 2pm will ship same day
Ink orders of $500 or more receive free UPS Ground Shipping *
Features & Benefits :

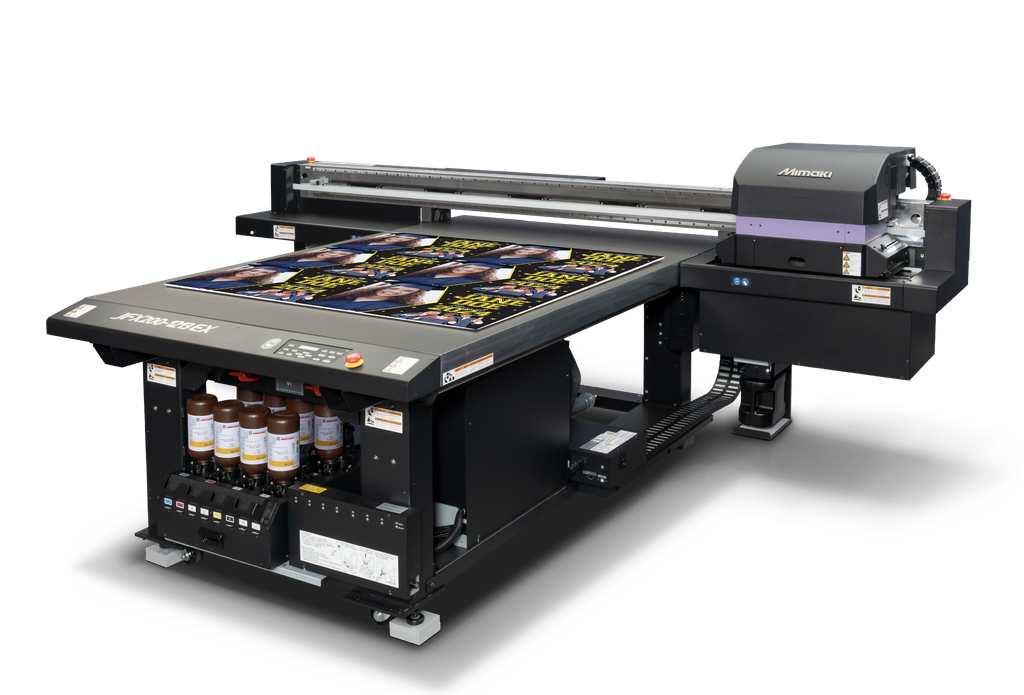

The Mimaki JFX200-1213 EX medium-format UV-LED flatbed printer is engineered for small to medium volume production, offering wide-format printing capabilities in a compact footprint. It meets the needs of print service providers and in-house print shops with limited space, delivering high-quality outputs across various applications, including textured surfaces, ADA-compliant signage, and jig workflows.
- Compact medium format design enables businesses to expand their production capabilities without requiring the space of a traditional wide-format printer.
- High versatility inks for printing to a wide range of rigid and flexible surfaces.
- Capable of producing 2.5D textures and ADA signage.
- Produce medium production volumes, such as printing multiple 18”x 24” signs simultaneously, or jig printing.
- IoT ready, Remote monitoring available through Mimaki PICT software for performance and production monitoring and event notification.
- Uses Greenguard Gold certified inks.
Compatibility :
Applications :
| Printhead | Four on-demand piezo heads in a staggered array |
| Print Resolutions | Maximum: 1200 x 1200 dpi |
| Print Speed (4 Color Mode) | 37.9 ft2/hr (3.5 m2/hr) |
| Maximum Print Area | 23.6″ x 16.5″ (600 x 420 mm) |
| Maximum media area | 26” x 18” |
| Maximum Media Thickness | up to 6.02″ (153 mm) |
| Maximum Media Weight | 17.1″ (8.0 kg) |
| Ink Type | Rigid: LH-100, Flexible: LUS-120, LUS-150 |
| Interface | Ethernet 1000BASE-T USB2.0 Hi-speed |
| Power Supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Power Consumption | AC100V: 1,000W or less |
| Operational Environment | Temperature 68° – 86° F (20-30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W × D × H) | 65.6″ x 50.8″ x 33.7″ (166.6 x 129 x 85.6 cm) |
| Weight | 330.7 lbs. (150 kg) |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 /CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM |
